DELL EMC D-PVM-DS-23 Real Exam Questions
The questions for D-PVM-DS-23 were last updated at Jul 24,2024.
- Exam Code: D-PVM-DS-23
- Exam Name: Dell PowerMax and VMAX Family Solutions Design 2023
- Certification Provider: DELL EMC
- Latest update: Jul 24,2024
A PowerMax parent Storage Group (SG) contains two child SGs: SG1 and SG2.
What is a valid Host I/O bandwidth limit setting for this configuration?
- A . Parent SG: 500
SG1: NOLIMIT
SG2: 1000 - B . Parent SG: 400
SG1: 500
SG2: NOLIMIT - C . Parent SG: 400
SG1: 500
SG2: 200 - D . Parent SG: 500
SG1: 500
SG2: 400
An administrator is managing historical performance data retention in Unisphere for PowerMax.
Which unit of time is associated with the numerical value they specify for the retention period?
- A . Months
- B . Hours
- C . Days
- D . Weeks
A storage administrator has mounted a snapshot of an existing datastore to the ESXi server and decided to keep its existing signature.
What action is prevented by keeping the existing signature?
- A . Increasing the datastore size
- B . Replicating the datastore
- C . Modifying the datastore configuration
- D . Restoring the datastore
When adding device pairs to an SRDF/Metro configuration using the -exempt option, what prevents a device pair from being added?
- A . R2 device is larger than the R1 device
- B . Source group and device pair are in SRDF/S mode
- C . R1 device is the source of a TimeFinder data copy
- D . Source group and device pair are in SRDF/Adaptive Copy mode
In what format can loaded and mapped BCSD performance data be exported?
- A . DOC
- B . XML
- C . CSV
- D . PFD
Which PowerMax initially ordered configuration provides the fewest available slots for front-end I/O modules per engine?
- A . PowerMax 2000 dual-engine
- B . PowerMax 8000 multi-engine
- C . PowerMax 2000 single-engine
- D . PowerMax 8000 single-engine
A PowerMax customer has an existing Masking View for a large database environment. The parent Storage Group in this Masking View has three child Storage Groups with different Service Levels (SLs). The customer has been experiencing some database performance issues and wants to set the SL to Platinum for all the devices.
When the storage administrator attempts to set the SL on the parent Storage Group, they receive an error and the operation fails.
What is the cause of the error?
- A . There is insufficient capacity in the Storage Resource Pool
- B . A child Storage Group already has the Platinum SL applied
- C . SLs cannot be set on parent Storage Groups
- D . Platinum SL is not available for Cascaded Storage Groups
What action is required before performing a restore operation from a TimeFinder SnapVX snapshot?
- A . Copy the snapshot
- B . Remount the production volume
- C . Unmount the production volume
- D . Terminate the snapshot

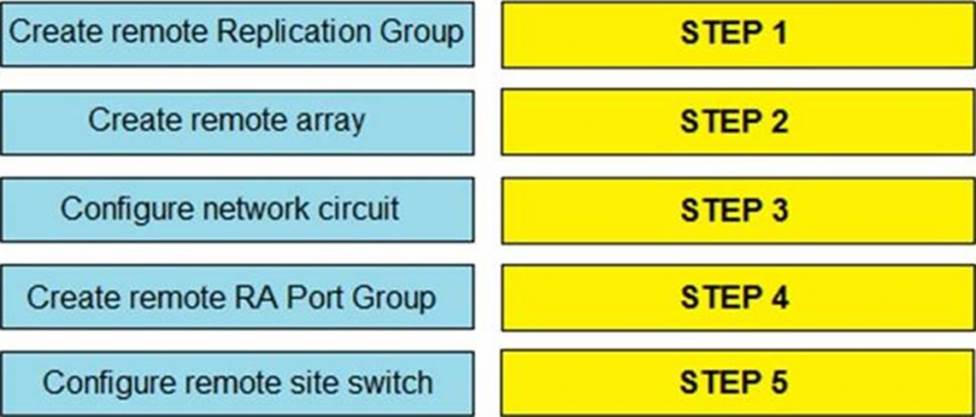

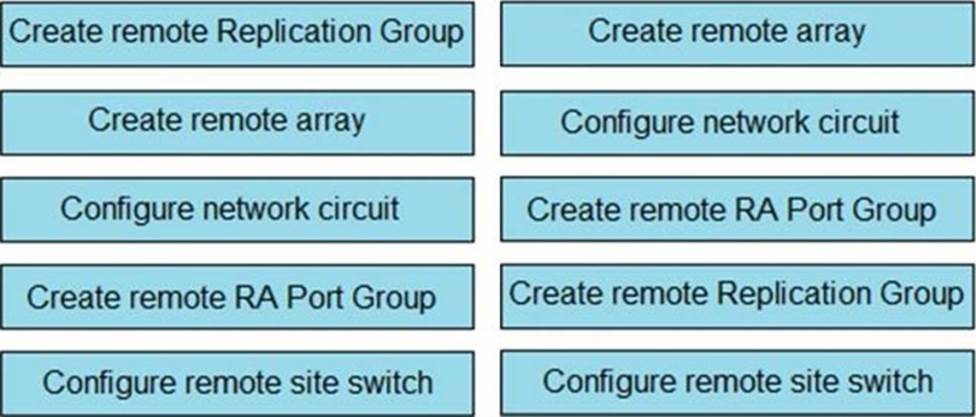

An architect is configuring BCSD to design SRDF/S between two new PowerMax arrays. The architect has completed the tasks for the local side of the solution, including RA Port Group, Replication Group, and site switch.
What is the correct order of steps the architect needs to take to complete the SRDF setup?
